Описание

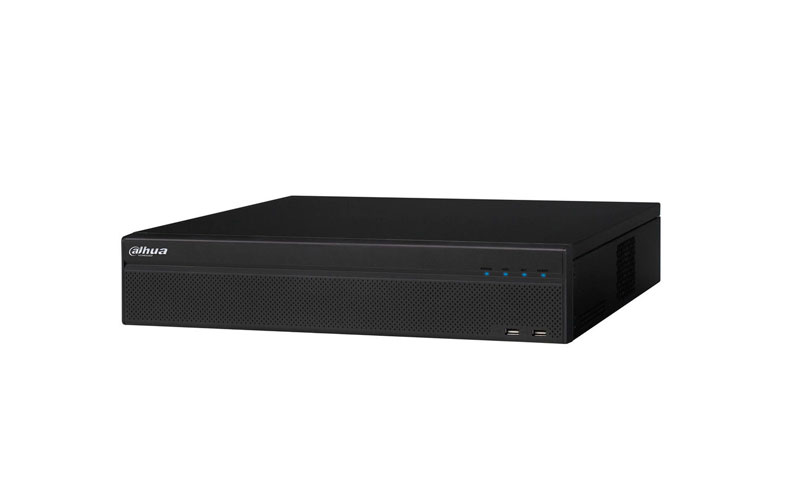

64-канальный сетевой видеорегистратор ОС-Embedded LINUX, H.265 / H.264 / MJPEG / MPEG4, видео выход: 2 HDMI (1 HDMI до 3840x2160), 1 VGA. Two-way Talk 1 вх/вых RCA , разрешение: 3840x2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768. Запись: 320Mbps Bit Rate: 16kbps ~ 20 Мбит на каждый канал. Тревож вх/вых: 16/6, 8 HDD до 48Tb+ 1 eSATA port, 4 USB3.0, 2 RJ-45 порт (10/100 / 1000Mbps), RS232,поддержка моб.устройств: iPhone, IPAD, Android. 128 пользователей одновременно. ONVIF Version 2.4. Питание AC 100 ~ 240 В. t=-10°C + 55°C. Аналогично модели NVR 5864, только имеет 16 РоЕ портов и 1 RJ-45 порт (10/100 / 1000Mbps)
| Model | DH-NVR5816-4KS2 DH-NVR5816-16P-4KS2 | DH-NVR5832-4KS2 DH-NVR5832-16P-4KS2 | DH-NVR5864-4KS2 DH-NVR5864-16P-4KS2 | |
| System | ||||
| Main Processor | Quad-core embedded processor | |||
| Operating System | Embedded LINUX | |||
| Video& Audio | ||||
| IP Camera Input | 16 channel | 32 channel | 64 channel | |
| Two-way Talk | 1 channel Input, 1 channel Output, RCA | |||
| Display | ||||
| Interface | 2 HDMI (1 HDMI up to 3840x2160), 1 VGA | |||
| Resolution | 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768 | |||
| Display Split | 1/4/8/9/16 | 1/4/8/9/16/25/36 | 1/4/8/9/16/25/36 | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||
| Recording | ||||
| Compression | H.265/H.264/MJPEG/MPEG4 | |||
| Resolution | 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.; | |||
| Record Bit Rate | 320Mbps | |||
| Bit Rate | 16kbps~ 20Mbps per channel | |||
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | |||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |||
| Video Detection & Alarm | ||||
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | |||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||
| Alarm Input | 16 channel | |||
| Relay Output | 6 channel | |||
| Playback & Backup | ||||
| Sync Playback | 1/4/8/16 | |||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | |||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||
| Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device | |||
| Network | ||||
| Ethernet | 2 RJ-45 port (10/100/1000Mbps) | |||
| 1 RJ-45 port (10/100/1000Mbps)(for -16P model) | ||||
| PoE | 16 ports (IEEE802.3af/at) (for -16P model) | |||
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P | |||
| Max. User Access | 128 users | |||
| Smart Phone | iPhone, iPad, Android | |||
| Storage | ||||
| Internal HDD | 8 SATA ports, up to 48TB | |||
| HDD Mode | Raid 0/1/5/6/10 | |||
| External HDD | 1 eSATA port | |||
| Auxiliary Interface | ||||
| USB | 4 ports (2 Rear USB3.0, 2 Front USB2.0) | |||
| RS232 | 1 port, For PC communication&Keyboard; | |||
| General | ||||
| Power Supply | Single, AC 100~240V, 50/60 Hz | |||
| Power Consumption | NVR: 16.7W for non-PoE model(without HDD) 17.5W for PoE model(without HDD) | |||
| PoE: Max 25.5W for single port(for -16P model), 150W in total | ||||
| Working Environment | -10°C~+55°C / 10%~90%RH / 86~106kpa | |||
| Dimension (W×D×H) | 2U, 440mm×454mm×95mm | |||
| Weight | 6.55KG for non-PoE model(without HDD) 7KG for PoE model(without HDD) | |||
Характеристики
| Основные | |
|---|---|
| Производитель | Dahua Technology |
| Страна производитель | Китай |
| Тип видеорегистратора | NVR |
| Тип корпуса | Горизонтальный |
| Формат сжатия | H.264 |
| Количество HDD | 8 |
| Управление видеорегистратором | ПК мышь и/или клавиатур |
