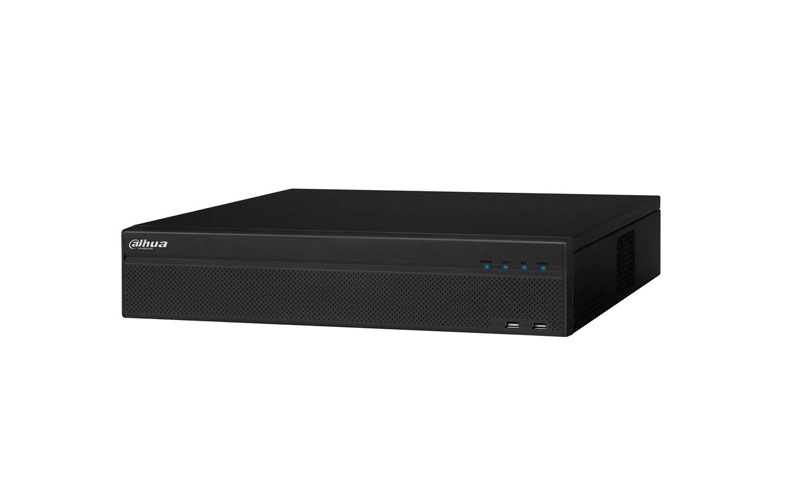

NVR5464-4KS2

Уточняйте цены у поставщика

Описание

64-канальный сетевой видеорегистратор ОС-Embedded LINUX, процессор: Quad-core embedded ; H.265/H.264/MJPEG/MPEG4,   Вых видео: 2 HDMI (один с разрешением 3840x2160), 1 VGA , Two-way Talk 1 вх/вых RCA , Поддерж. разр: 3840x2160,1920×1080, 1280×1024, 1280×720, 704x576, Max 16ch@1080P при сжатии H.265/H.264,  Запись: 320  Мб/сек(1,3 Мр-2-4  Мб /2Мр-4-6  Мб/ 3Мр-  6-8 Мб/ 5 Мр-16 Мб). Max 16ch@1080P при сжатии H.265/H.264,  Bit Rate 16kbps~ 20Mbps все каналы. Тревож вх/вых: 16/6,  4 HDD по 6 Тб+ 1 eSATA port , 3 USB2.0,  2 RJ-45 port (10/100/1000Mbps). RS 232, 128 пользователей одновременно, ONVIF Version 2.4., Питание  NVR:12VDC/2A

ModelDH-NVR5416-4KS2
DH-NVR5416-16P-4KS2
DH-NVR5432-4KS2 DH-NVR5432-16P-4KS2DH-NVR5464-4KS2 DH-NVR5464-16P-4KS2
System
Main ProcessorQuad-core embedded processor
Operating SystemEmbedded LINUX
Video& Audio
IP Camera Input16 channel32 channel64 channel
Two-way Talk1channel Input, 1channel Output, RCA
Display
Interface2 HDMI (1 HDMI up to 3840x2160), 1 VGA
Resolution3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split1/4/8/9/161/4/8/9/16/25/361/4/8/9/16/25/36
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
CompressionH.265/H.264/MJPEG/MPEG4
Resolution12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.;
Record Bit Rate320Mbps
Bit Rate16kbps~ 20Mbps per channel
Record ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger EventsRecording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video DetectionMotion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input16 channel
Relay Output6 channel
Playback & Backup
Sync Playback1/4/8/16
Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup ModeUSB Device/Network/Internal SATA burner/eSATA Device
Network
Ethernet2 RJ-45 port (10/100/1000Mbps)
1 RJ-45 port (10/100/1000Mbps)(for -16P model)
PoE16 ports (IEEE802.3af/at) (for -16P model)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
Storage
Internal HDD4 SATA ports, up to 24TB
External HDD1 eSATA port
Auxiliary Interface
USB3 ports (2 Rear USB3.0,1 Front USB2.0)
RS2321 port, For PC communication&Keyboard;
General
Power SupplySingle, AC 100~240V, 50/60 Hz
Power ConsumptionNVR: 16.7W for non-PoE model(without HDD)
17.5W for PoE model(without HDD)
PoE: Max 25.5W for single port(for -16P model), 150W in total
Working Environment-10°C~+55°C / 10%~90%RH / 86~106kpa
Dimension
(W×D×H)
1.5U, 440mm×413mm×75mm
Weight4.3KG for non-PoE model(without HDD)
4.65KG for PoE model(without HDD)

Характеристики

Основные
Производитель  Dahua Technology
Страна производительКитай
Тип видеорегистратора  NVR
Тип корпусаГоризонтальный
Операционная системаLinux
Формат сжатия   H.264
Количество каналов64
Количество HDD4
Управление видеорегистратором ПК мышь и/или клавиатура
