Матрица 1/3" 4 Megapixel progressive scan CMOS, True день/ночь ICR, Н.264, MJPEG, разрешение 2688(H)x1520(V)Pixel, цвет: 0.01Lux/F2 (Color), объектив f=3.6 мм, запись 4M(1~20fps)/3M(1~25/30fps), Bit Rate H.264: 32K ~ 10 Mbps, Тройной поток, SMART технологии, BLC/ AWB/ AGC/ WDR 120/ 3DNR/ RJ45 (10M/100M), 20 польз. по сети, ИК до 30 м. Питание DC12V/PoE/5 W, t=-30°C...+60°C, IP 67

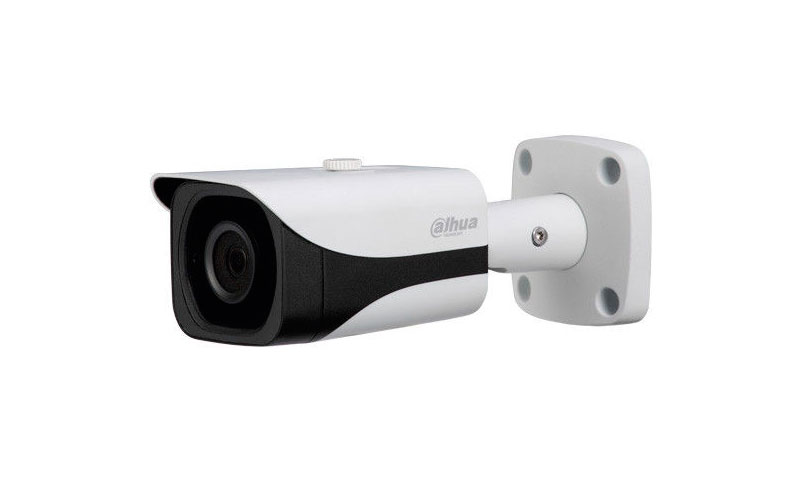

| Model | DH-IPC-HFW4421E |
| Camera |
| Image Sensor | 1/3” 4Megapixel progressive scan CMOS |
| Effective Pixels | 2688(H)x1520(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s |
| Min. Illumination | 0. 01Lux/F2.0(Color), 0Lux/F2.0(IR on) |
| S/N Ratio | More than 50dB |
| Video Output | N/A |
| Camera Features |
| Max. IR LEDs Length | 40m |
| Day/Night | Auto(ICR)/Color/B/W |
| Backlight Compensation | BLC / HLC / WDR(120 dB) |
| White Balance | Auto/Sunny/Night/Outdoor/Customized |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D |
| Privacy Masking | Up to 4 areas |
| Lens |
| Focal Length | 3.6mm (6mm optional) |
| Max Aperture | F2.0(F2.0) |
| Focus Control | Manual |
| Angle of View | H:84°(56°) |
| Lens Type | Fixed lens |
| Mount Type | Board-in Type |
| Video |
| Compression | H.264/H.264B/H.264H/ MJPEG |
| Resolution | 4M(2688×1520)/4M(2560×1440)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate | Main Stream | 4M(1~20fps)/3M(1~25/30fps)(WDR OFF) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) |
| Third Stream | 720P(1-20fps) |
| Bit Rate | H.264: 32K ~ 10Mbps |
| Corridor Mode | Support |
| Audio |
| Compression | N/A |
| Interface | N/A |
| Smart Function(Optional) |
| Smart detection | Tripwire |
| Intrusion |
| Abandoned/Missing |
| Scene Change |
| Audio detect |
| Face detect |
| Network |
| Ethernet | RJ-45 (10/100Base-T) |
| Wi-Fi | N/A |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x |
| Compatibility | ONVIF ,PSIA,CGI |
| Max. User Access | 20 users |
Smart Phone | iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot | N/A |
| RS485 | N/A |
| Alarm | N/A |
| PIR Sensor Range | N/A |
| General |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | < 5W |
| Working Environment | -30°C~+60°C, Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | N/A |
| Dimensions | Φ70mm×180mm |
| Weight | 0.4kg |
