Описание
Матрица 1/2.8"Exmor CMOS, 1.3M Pixels, разрешение 1920×1080 Рх, Color: 0.05LuxF1.4;B / W: 0.005LuxF1.4. видео выход BNC (1.0Vp-р / 75Ω), PAL / NTSC. Авто (ICR) / Цвет / B / W, BLC / HLC / DWDR (Digital WDR), Ультра DNR (2D/3D). f=4.7mm~94.0mm(20x оптический зум), режим PTZ (5 шабл., 8 тур, Auto Pan, Auto Scan), H.264 / MJPEG, Bit Rate: H.264: 56K ~ 8192Kbps, MJPEG: 56K~20480Kbps, аудио G.711a / G.711u (32kbps) / PCM (128kbps). RJ-45 (10 / 100Base-T), ONVIF PSIA CGI, Micro SD, Макс 64GB, RS485, аварийная сигнализация 7/2 канала, питание AC 24V / 3A (± 25%) + POE (802.3at). IP67, IK10. скорость вращения: 360 °/с. t=-40ºC ~ 70ºC

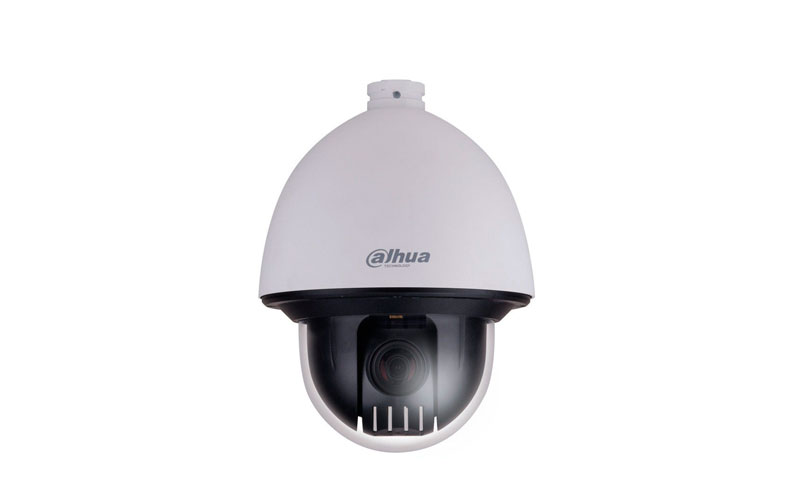

| Model | DH-SD60220T-HN | |
| Camera | ||
| Image Sensor | 1/2.8” Exmor CMOS | |
| Effective Pixels | 1920(H)×1080(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4 | |
| S/N Ratio | More than 50dB | |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | Ultra DNR (2D/3D) | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 4.7mm ~ 94.0mm (20x Optical zoom) | |
| Max Aperture | F1.4 ~ F2.6 | |
| Focus Control | Auto / Manual | |
| FOV-H | H: 56.1° ~ 3.1° | |
| Close Focus Distance | 100mm~ 1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~150° /s | |
| Preset Speed | Pan: 600° /s; Tilt: 500° /s | |
| Preset | 300 | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240) | |
| Frame Rate | Main Stream | 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
| Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
| Sub Stream 2 | 720P/D1/ CIF (1 ~ 25/30fps) | |
| Bit Rate | H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps | |
| Audio | ||
| Compression | G.711a / G.711u(32kbps)/ PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| Intelligent Function | ||
| IVS(Optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, | |
| Face Detection | Support | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 64GB | |
| RS485 | 1 | |
| Alarm | 7/2 channel In/Out | |
| General | ||
| Power Supply | AC 24V/3A (±25%) POE plus(802.3at) | |
| Power Consumption | 13W,20W (Heater on) | |
| Working Environment | -40ºC ~ 70ºC / Less than 90% RH | |
| Ingress Protection | IP67, IK10 | |
| Dimensions | Φ222(mm) x 297(mm) | |
| Weight | 6.2kg | |
Характеристики
| Основные атрибуты | |
|---|---|
| Производитель | Dahua Technology |
| Страна производитель | Китай |
| Тип камеры | IP |
| Форм-фактор | Поворотный |
| Применение | Внутренняя/Уличная |
| Тип матрицы | |
