Описание

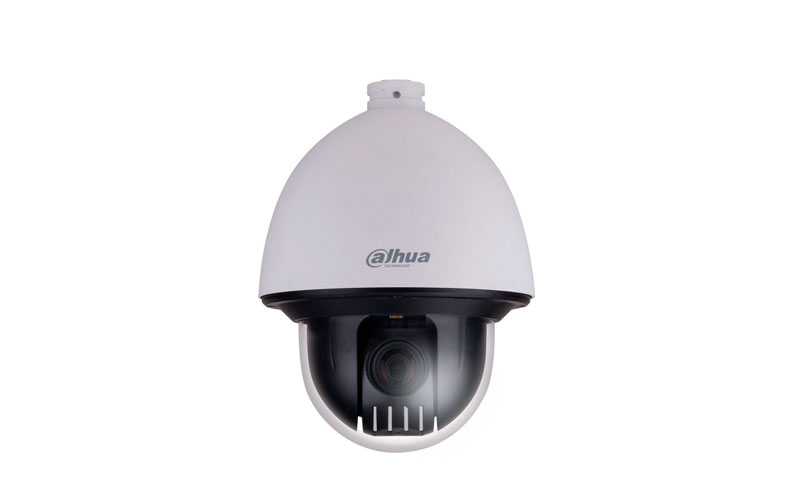

Матрица 1/3"Exmor CMOS, 1.3M Pixels, DWDR, день / ночь (ICR), Ультра DNR. 0.05Lux(color) 0.005 Lux (B/W), разрешение: 1280х960 пикс, H.264/MJPEG, запись 1.3 Mp: 25fps, 720P: 60 fps, аудио: G.711a / G.711u (32kbps) / PCM (128kbps). RJ-45 (10 / 100Base-T). ONVIF,PSIA,CGI. Micro SD, Макс 64GB. RS485. Аварийная сигнализация 7/2 канала. Питание AC 24V / 3A (± 25%)+ POE (802.3at), IP67, IK10. Режим PTZ ( 5 шабл., 8 туров, Auto Pan, Auto Scan). 20 - кратный оптический зум (4.7mm ~ 94.0mm). Видео выход BNC (1.0Vp-р / 75Ω), PAL / NTSC. Скорость вращения 360/сек. t=-40 +70°С.
| Model | DH-SD60120T-HN | |
| Camera | ||
| Image Sensor | 1/3” CMOS | |
| Effective Pixels | 1280(H) x 960(V), 1.3Megapixels | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/3 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4, | |
| S/N Ratio | More than 55dB | |
| Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | Ultra DNR (2D/3D) | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 4.7mm ~ 94.0mm (20x Optical zoom) | |
| Max Aperture | F1.4 ~ F2.6 | |
| Focus Control | Auto / Manual | |
| FOV-H | H: 56.1° ~ 3.1° | |
| Close Focus Distance | 100mm~ 1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~150° /s | |
| Preset Speed | Pan: 600° /s; Tilt: 500° /s | |
| Preset | 300 | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 720P(1280×720) / D1(704×576/ 704×480) /CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 720P(1~50/60fps) |
| Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
| Sub Stream 2 | 720P/D1/ CIF (1 ~ 25/30fps) | |
| Bit Rate | H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps | |
| Audio | ||
| Compression | G.711a / G.711u(32kbps)/ PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| Intelligent Function | ||
| IVS(Optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, | |
| Face Detection | Support | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
| Compatibility | ONVIF PSIA CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 64GB | |
| RS485 | 1 | |
| Alarm | 7/2 channel In/Out | |
| General | ||
| Power Supply | AC 24V/3A (±25%) POE plus(802.3at) | |
| Power Consumption | 13W,20W (Heater on) | |
| Working Environment | -40ºC ~ 70ºC / Less than 90% RH | |
| Ingress Protection | IP67, IK10 | |
| Dimensions | Φ222(mm) x 297(mm) | |
| Weight | 6.2kg | |
Характеристики
| Основные атрибуты | |
|---|---|
| Производитель | Dahua Technology |
| Страна производитель | Китай |
| Тип камеры | IP |
| Форм-фактор | Поворотный |
| Применение | Внутренняя/Уличная |
| Тип матрицы | CMOS |
| Физический размер матрицы | 1/3" |
| Изображение картинки | Цветная |
| Режим съемки "День/ночь" | Да |
| Переключение режимов "День/ночь" | ICR |
| Наличие ИК-подсветки | Да |
| Дальность ИК-подсветки | 10.0(м) |
