Матрица 1/3" 1.3 Megapixel progressive scan CMOS,   день/ночь ICR, Н.264, MJPEG, разрешение 1280х960 Pixel, цвет: 0.01Люкс/F2.0,  объектив f=3.6 мм,  запись 1.3Mp : 25к/с, Тройной поток,  Bit Rate H.264: 32K ~ 10 Мbps,   BLC/  AWB/ AGC/ DWDR/ 3DNR/ Onvif, RJ45 (10M/100M) SMART технологии: обнаружение вторжений, перекрестное обнаружение,  распознование лиц,  ИК до 30 м. Питание DC12V/PoE/4.7 W, t=-40°C...+60°C, IP 67

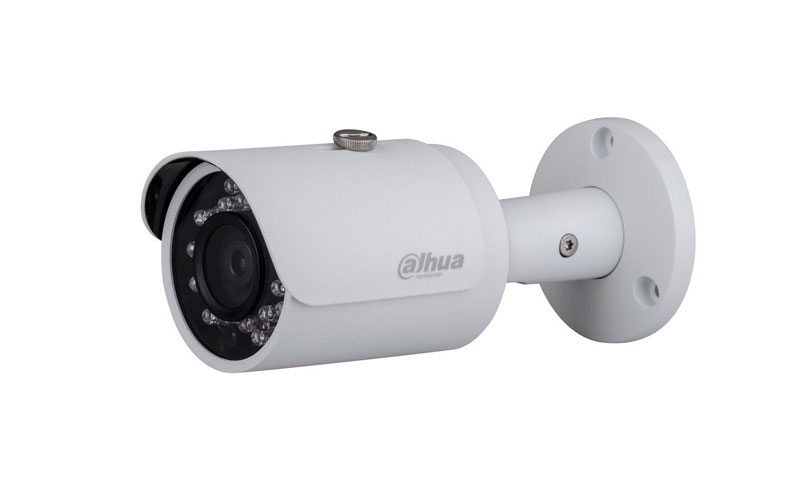

ModelDH-IPC-HFW4120SCameraImage Sensor1/3” 1.3Megapixel progressive scan CMOSEffective Pixels1280(H) x 960(V)Scanning SystemProgressiveElectronic Shutter SpeedAuto/Manual, 1/3(4)~1/100000s Min. Illumination

0.01Lux/F2.0(Color), 0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

Video Output

N/A

Camera FeaturesMax. IR LEDs Length30mDay/NightAuto(ICR)/Color/B/WBacklight CompensationBLC / HLC / DWDRWhite BalanceAuto/Sunny/Night/Outdoor/CustomizedGain ControlAuto/ManualNoise Reduction3DPrivacy MaskingUp to 4 areasLensFocal Length3.6mm (6mm optional)Max ApertureF2.0(F2.0)Focus ControlManualAngle of ViewH:74°(47°)Lens TypeFixed lensMount TypeBoard-in TypeVideoCompressionH.264/H.264B/H.264H/ MJPEGResolution1.3M(1280x960)/720P(1280×720)/ D1(704×576/704×480) /
CIF(352×288/352×240)  Frame RateMain Stream1.3M/720P(1 ~ 25/30fps)Sub StreamD1/CIF(1 ~ 25/30fps)Third Stream720P(1 ~ 14/7fps)Bit RateH.264: 32K ~ 10MbpsCorridor ModeSupportAudioCompressionN/AInterfaceN/ASmart Function(Optional)  Smart detectionTripwireIntrusionAbandoned/MissingScene ChangeAudio detectFace detectNetworkEthernetRJ-45 (10/100Base-T)Wi-FiN/AProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1xCompatibilityONVIF,PSIA,CGIMax. User Access20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary InterfaceMemory SlotN/ARS485N/AAlarmN/APIR Sensor RangeN/AGeneralPower SupplyDC12V, PoE (802.3af)Power Consumption < 4.5WWorking Environment-30°C~+60°C, Less than 95% RHIngress ProtectionIP67Vandal ResistanceN/ADimensionsΦ70mm×165mmWeight0.42kg
