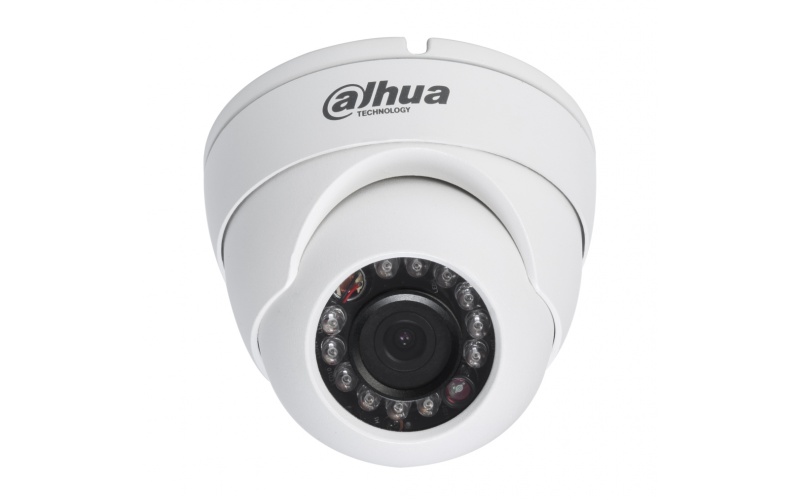

Матрица 1/3" 1.3 Megapixel progressive scan CMOS, день/ночь ICR, Н.264, MJPEG, разрешение 1280х960 Pixel, цвет: 0.01Люкс/F1.8, объектив f=3.6 мм, запись 1.3Mp : 25к/с, Bit Rate H.264: 32K ~ 10 Mbps, Тройной поток, BLC/ AWB/ AGC/ DWDR/ 3DNR/ Onvif, RJ45 (10M/100M) 10 Мbps, BLC/ AWB/ AGC/ DWDR/ 3DNR/ Onvif, RJ45 (10M/100M) SMART технологии: обнаружение вторжений, перекрестное обнаружение, распознование лиц, ИК до 30 м. Питание DC12V/PoE, t=-20°C...+60°C, IP 67
| Model | DH-IPC-HFW4120M |
| Camera |
| Image Sensor | 1/3” 1.3Megapixel progressive scan CMOS |
| Effective Pixels | 1280(H) ´ 960(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s |
| Min. Illumination | 0. 01Lux/F2.0(Color), 0Lux/F2.0(IR on) |
| S/N Ratio | More than 50dB |
| Video Output | N/A |
| Camera Features |
| Max. IR LEDs Length | 30m |
| Day/Night | Auto(ICR)/Color/B/W |
| Backlight Compensation | BLC / HLC / DWDR |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D |
| Privacy Masking | Up to 4 areas |
| Lens |
| Focal Length | 3.6mm (2.8mm,6mm optional) |
| Max Aperture | F1.8(F1.8/F1.8) |
| Focus Control | Manual |
| Angle of View | H:74°(86°/47°) |
| Lens Type | Fixed lens |
| Mount Type | Board-in Type |
| Video |
| Compression | H.264/H.264B/H.264H/ MJPEG |
| Resolution | 1.3M(1280x960)/720P(1280×720)/ D1(704×576/704×480) /
CIF(352×288/352×240) |
| Frame Rate | Main Stream | 1.3M/720P(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) |
| Third Stream | 720P(1 ~ 14/7fps) |
| Bit Rate | H.264: 32K ~ 10Mbps |
| Corridor Mode | Support |
| Audio |
| Compression | N/A |
| Interface | N/A |
| Smart Function(Optional) |
| Smart detection | Tripwire |
| Intrusion |
| Abandoned/Missing |
| Scene Change |
| Audio detect |
| Face detect |
| Network |
| Ethernet | RJ-45 (10/100Base-T) |
| Wi-Fi | N/A |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Compatibility | ONVIF,PSIA,CGI |
| Max. User Access | 20 users |
Smart Phone | iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot | N/A |
| RS485 | N/A |
| Alarm | N/A |
| PIR Sensor Range | N/A |
| General |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | < 5W |
| Working Environment | -30°C~+60°C, Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | N/A |
| Dimensions | Φ93.4mm×80mm |
| Weight | 0.3Kg(0.42Kg with packaging) |
