Матрица 1/3" 1/2.8” 2Megapixel progressive scan CMOS, 1 BNC выход, день/ночь ICR, Н.264/ MJPEG, разрешение 1920х1080 Pixel, цвет: 0.01Люкс/ F1.4,моторизированный объектив f=2,7-12 мм, запись 2 Mp : 25к/с, Bit Rate H.264: 16K ~ 10 Мbps,Тройной поток, BLC/ AWB/ AGC/ DWDR / 3DNR/ SMART технологии, Onvif, АУДИО канал, Micro SD Max128GB, RJ45 (10M/100M). ALARM 2/1, ИК до 50 м. Питание DC12V/11,5 WPoE, t=-30°C...+60°C, IP 67

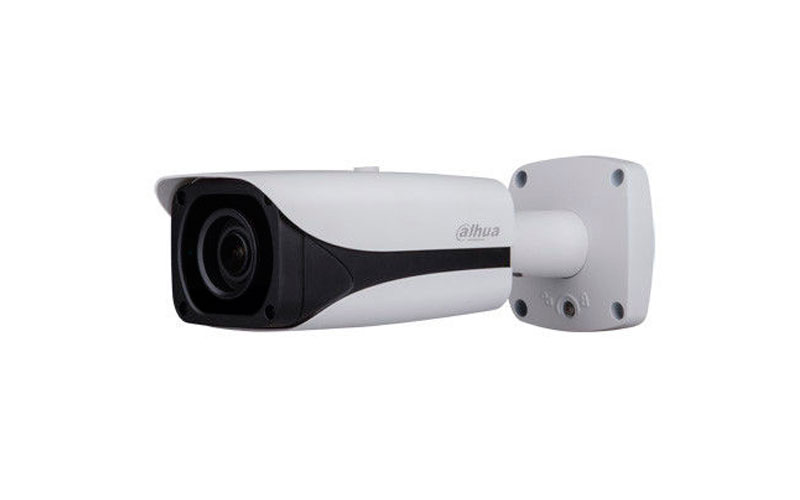

| Model | DH-IPC-HFW5221E-Z |
| Camera |
| Image Sensor | 1/2.7” 2Megapixel progressive scan CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s |
| Min. Illumination | 0.01Lux/F1.4(Color); 0Lux/F1.4(IR on) |
| S/N Ratio | More than 50dB |
| Video Output | 1 port |
| Camera Features |
| Max. IR LEDs Length | 50m |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC /WDR(120dB) |
| White Balance | Auto/Sunny/Night/Outdoor/Customized |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D |
| Privacy Masking | Up to 4 areas |
| Lens |
| Focal Length | 2.7mm~12mm |
| Max Aperture | F1.4 |
| Focus Control | Motorized |
| Angle of View | H: 99°~34° |
| Lens Type | Motorized/ Auto Iris(DC) |
| Mount Type | Board-in Type |
| Video |
| Compression | H.264/H.264H/H.264B/MJPEG |
| Resolution | 1080P(1920x1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate | Main Stream | 1080P/720P(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) |
| | Third Stream | 720P(1 ~ 13/4fps) |
| Bit Rate | H.264: 32K bps~ 10Mbps |
| Audio |
| Compression | G.711a/ G.711u/ AAC |
| Interface | 1/1 channel In/Out |
| Smart Function(Optional) |
| Smart detection | Tripwire |
| Intrusion |
| Abandoned/Missing |
| Scene Change |
| Audio detect |
| Face detect |
| Network |
| Ethernet | RJ-45 (10/100Base-T) |
| Wi-Fi | N/A |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| ONVIF | ONVIF,PSIA,CGI |
| Max. User Access | 20users |
Smart Phone | iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot | Micro SD, Max 128GB |
| RS485 | N/A |
| Alarm | 2/1 channel In/Out |
| PIR Sensor Range | N/A |
| General |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | < 11.5W (with IR on, motorized lens working) |
| Working Environment | -30°C~+60°C, Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | N/A |
| Dimensions | 272.9 mm × 94.9mm× 94.9mm |
| Weight | 1.1kg |
