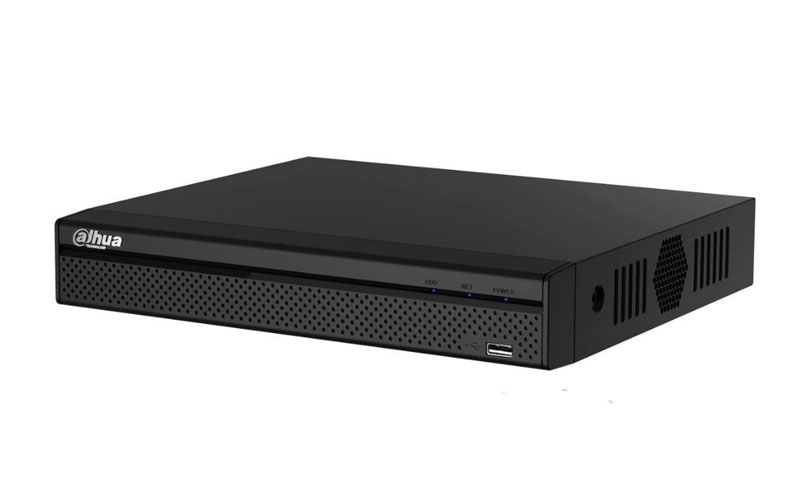

HCVR4116HS-S3

Уточняйте цены у поставщика

Описание

16-канальный видеорегистратор. Трибрид  Встроенная OC- Embedded LINUX;  Н.264.  Подключение  аналог , HDCVI 1080 Р/ 720P/ IP 16+2 до 5Mp. Аудио 1вх/вых+ интерком Two-way Talk Dual Stream. Скорость записи:Основной поток: 1 канал *1080 N (960*1080 Р) (1~25/30fps)+ 15 каналов (1~15fps) или 16 каналов *960 Н (1~25/30fps). Доп поток: CIF/QCIF(1~7fps),  Вых: 1 HDMI, 1 VGA. 1 HDD по 6 Тб, 2 USB2.0, RS 485, RJ45 10M/100M, P2P,  Bit Rate: 1~4096 Kb/s, 4 маскир. зоны, 128 пользователей одновременно, ONVIF Version 2.4, Smart Phone:  iPhone, iPad, Android, Windows Phone.  Питание 12VDC/2 А (БП в компл)

ModelDH-HCVR4104HS-S3DH-HCVR4108HS-S3DH-HCVR4116HS-S3
System
Main ProcessorEmbedded processor
Operating SystemEmbedded LINUX
Video
Input4 channel, BNC8 channel, BNC16 channel, BNC
StandardAnalogNTSC/PAL
HDCVI1080P/720P HDCVI Camera
IP4+1 up to 2Mp8+2 up to 5Mp16+2 up to 5Mp
Audio
Input1 channel, RCA
Output1 channel, RCA
Two-way TalkReuse audio input/output channel 1
Display
Interface1 HDMI, 1 VGA
Resolution1920×1080, 1280×1024, 1280×720, 1024×768
Display Split1/4/61/4/8/91/4/8/9/16
Privacy Masking4 rectangular zones (each camera)
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio CompressionH.264/G.711
Resolution1080N(960*1080)/720P(1280×720)/960H(960×576/960480)/ D1(704×576/704×480)/HD1(352×576/352×480) /BCIF(704×288/704×240) CIF(352×288/352×240) / QCIF(176×144/176×120)
Record RateMain Stream:1080N/720P/960H/D1/HD1/BCI F/CIF/QCIF(1~25/30fps)1*1080N/720P(1~25/30fps)+ 7*(1~12/15fps)/960H/D1/HD1/BCIF/ CIF/QCIF (1~25/30fps)1*1080N/720P(1~25/30fps)+15*(1~12/15fps) /960H/D1/HD1/BCIF/ CIF/QCIF (1~25/30fps)
Extra StreamCIF/QCIF(1~15fps)CIF/QCIF(1~7fps)
Bit Rate1~4096Kb/s
Record ModeManual, Schedule(Regular(Continuous),MD), Stop
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video DetectionMotion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback1/41/4/91/4/9/16
Search ModeTime/Date, MD & Exact search (accurate to second)
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup ModeUSB Device/Internal SATA burner/Network
Network
EthernetRJ-45 port (10/100M)
Network FunctionsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access128 users
Smart PhoneiPhone, iPad, Android, Windows Phone
Storage
Internal HDD1 SATA port, up to 6TB
Auxiliary Interface
USB Interface2 ports(1 Rear), USB2.0
RS4851 port, For PTZ Control
General
Power SupplyDC12V/2A
Power Consumption10W(without HDD)
Working Environment-10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension(W×D×H)Compact 1U, 260mm×220mm×40mm
Weight0.75KG(without HDD)



Характеристики

Основные
Производитель  Dahua Technology
Страна производительКитай
Тип видеорегистратора  HD-CVI
Тип корпусаГоризонтальный
Операционная системаLinux
Количество каналов16
Количество HDD1
Поддержка PoE  Нет
Управление видеорегистраторомПК мышь и/или клавиатура
