Описание

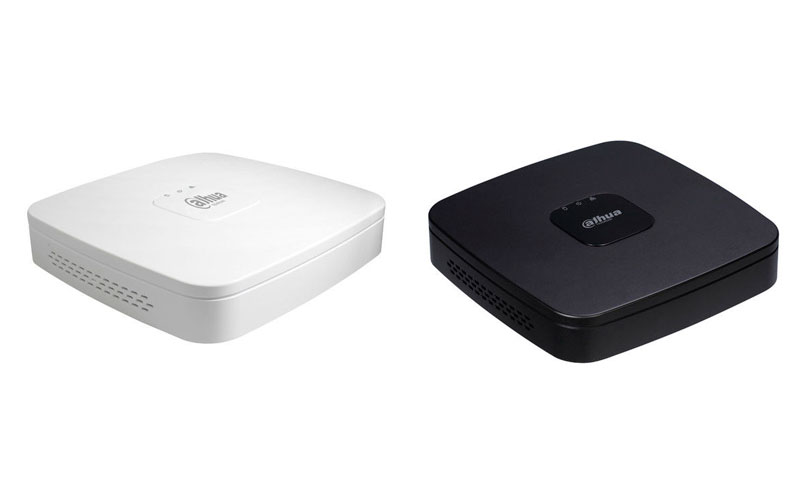

4-канальный видеорегистратор. Трибрид Встроенная OC- Embedded LINUX; Н.264. Подключение HDCVI (1080Р), аналог , IP (1080Р). Dual Stream. Скорость записи: 1080Р 25к/с. Вых: 1 HDMI, 1 VGA. 1 аудио вх/вых RCA, 1 HDD по 4 Тб, 2 USB2.0, RJ45 10M/100M,. Bit Rate: 96~6144Kb/s, Р2Р, 4 маскир. зоны, 128 пользователей одновременно, Smart Phone: iPhone, iPad, Android, Windows Phone. Питание 12VDC/2 А (БП в компл)
| Model | DH-HCVR7104C-S3 | ||
| System | |||
| Main Processor | Embedded processor | ||
| Operating System | Embedded LINUX | ||
| Video | |||
| Input | 4 channel, BNC | ||
| Standard | Analog | NTSC/PAL | |
| HDCVI | 1080P/720P HDCVI Camera | ||
| IP | 4+2 up to 5Mp | ||
| Audio | |||
| Input | 1 channel, RCA | ||
| Output | 1 channel, RCA | ||
| Two-way Talk | Reuse audio input/output channel 1 | ||
| Display | |||
| Interface | 1 HDMI, 1 VGA | ||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | ||
| Display Split | 1/4/6 | ||
| Privacy Masking | 4 rectangular zones (each camera) | ||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||
| Recording | |||
| Video/Audio Compression | H.264/G.711 | ||
| Record Rate | Main Stream: | 1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) | |
| Extra Stream | D1/CIF/QCIF(1~25/30fps) | ||
| Bit Rate | 1~6144Kb/s | ||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | ||
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||
| Video Detection | |||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | ||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||
| Intelligent Video (Optional) | Tripwire, Intrusion, Abandoned/Missing, Face Detection | ||
| Playback & Backup | |||
| Sync Playback | 1/4 | ||
| Search Mode | Time/Date, MD & Exact search (accurate to second) | ||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||
| Backup Mode | USB Device/Internal SATA burner/Network | ||
| Network | |||
| Ethernet | RJ-45 port (10/100M) | ||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P | ||
| Max. User Access | 128 users | ||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||
| Storage | |||
| Internal HDD | 1 SATA port, up to 6TB | ||
| Auxiliary Interface | |||
| USB Interface | 2 ports(2 Rear), USB2.0 | ||
| General | |||
| Power Supply | DC12V/2A | ||
| Power Consumption | 10W(without HDD) | ||
| Working Environment | -10°C ~+55°C / 10%~90%RH / 86~106kpa | ||
| Dimension(W×D×H) | Smart 1U, 205mm×205mm×40mm | ||
| Weight | 0.5KG(without HDD) | ||
Характеристики
| Основные | |
|---|---|
| Производитель | Dahua Technology |
| Страна производитель | Китай |
